Gen-Built Development Systems — Panel & Frame Production

What we build我们的产品

Three integrated building systems三大集成建筑系统

Each system ships as a pre-engineered kit — hubs, frames, and panels precision-manufactured in our Zhongshan facility and ready for fast-track assembly anywhere in the world. 每套系统均以预制套件形式出货——轮毂、框架和板材均在我们的中山工厂精密制造，可在全球任何地点快速组装。

Gen-Built systems flythrough博建系统飞览

System 01

Geodesic Domes测地线穹顶

Pre-engineered geodesic dome framing using cast stainless steel hubs and laser-cut pipe. Scalable to any diameter. Ideal for wellness, hospitality, and off-grid living.采用铸造不锈钢轮毂与激光切割管材的预制测地线穹顶框架，可适配任意直径，适用于康养、酒店度假及离网生活等场景。

System 02

Octahedral Truss Pyramids八面体桁架金字塔

True octahedral geometry in 52° and 45° face angles. Stainless hub-and-frame with MgO cladding. Engineered for monumental, commercial, and ceremonial use.52°与45°面角的真实八面体几何结构，不锈钢轮毂框架配氧化镁板覆面，适用于纪念性、商业及礼仪建筑。

System 03

Cube Connector System立方体连接器系统

Universal hub connectors enabling fully modular cubic construction in any direction. Stack, span, and configure orthogonal volumes from a single repeating component logic.通用轮毂连接器，支持向任意方向全模块化立方体建造。以单一重复构件逻辑实现叠层、跨跨与正交体量配置。

Capabilities增值能力

Custom build art structures定制艺术建筑结构

Alongside our three standard systems, we take on bespoke geometry, premium surface finishes, and a zero-waste program that turns every offcut into original artwork. 除三大标准系统外，我们承接定制几何结构、高端表面饰面，并推行零废料计划——将每一块边角料转化为原创艺术作品。

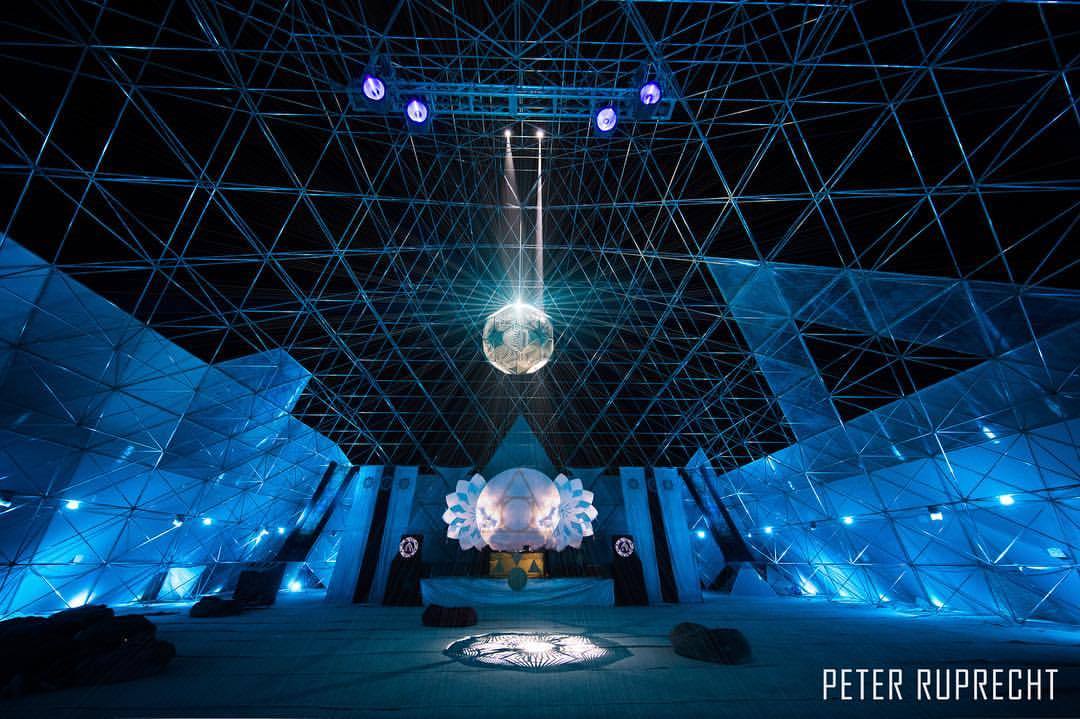

Interior of a geodesic dome art structure with stage lighting and triangular steel framework — Photo: Peter Ruprecht

Capability 01

Custom Building定制建筑

Bespoke structures beyond our standard geometries. Bring your own design or brief and we engineer the hubs, frames, and panels to match — one-off pavilions, hybrid forms, and site-specific architecture built with the same precision hub-and-frame system.超越标准几何形状的定制结构。提供您自己的设计或需求，我们即为其定制轮毂、框架与板材——一次性展亭、混合形态及场地专属建筑，均采用同样精密的轮毂框架系统建造。

Capability 02

Specialty Veneering特色饰面贴面

Premium architectural surfaces bonded to finished panels in-house — natural stone laminate, timber, brushed and mirror stainless, and custom textured finishes. A project-specific, paint-free finish for hospitality, retail, and signature architectural work.在厂内将高端建筑表层粘合于成品板材——天然石材复合板、木饰面、拉丝与镜面不锈钢及定制纹理饰面。为酒店、零售及标志性建筑项目提供专属、无喷涂的表面处理。

Capability 03

Zero-Waste Art Program零废料艺术计划

Nothing leaves the floor as scrap. Every stainless offcut, tube tail, and board remnant is routed to our on-site art studio, where it is reworked into high-quality sculpture, wall pieces, and functional objects — closing the loop on our material and giving each build a second life.厂内不产生任何废料。每一块不锈钢边角料、管材尾料与板材余料都被送往厂内艺术工作室，重新加工成高品质雕塑、墙面作品与功能性物件——实现材料闭环，赋予每次建造第二次生命。

Frame Production框架生产

From raw tube to precision frame component从原材管材到精密框架构件

We source pre-made 304 stainless steel tube stock and run it through our fiber laser tube cutting line, producing hub-ready frame members cut to exact geometric lengths. Hubs are cast by our manufacturing partner and arrive ready to assemble. 我们采购预制304不锈钢管材，经过光纤激光管材切割线加工，按精确几何尺寸切割出可直接与轮毂对接的框架构件。轮毂由合作伙伴铸造，到厂即可组装。

304 SS Tube Stock Intake304不锈钢管材进料

Pre-made 304 stainless steel round and square tube is sourced from certified suppliers and received at our Caixun facility. Stock is inspected for dimensional tolerance, wall thickness, and surface finish (2B or No.8 mirror) before entering the cutting line. 预制304不锈钢圆管与方管由认证供应商提供，验收入库后，在进入切割线前，对管材的尺寸公差、壁厚及表面处理（2B或No.8镜面）进行全面检验。

Round & square profiles圆管与方管 ⌀10–120 mm range直径10–120 mm 6m stock lengths6米定尺 304 SS / 2B or No.8 finish304不锈钢 / 2B或No.8处理

Fiber Laser Tube Cutting光纤激光管材切割 CC6012Y-1500W

The CC6012Y-1500W fiber laser tube cutter handles all length cuts and end-profile miters for dome, pyramid, and cube frame members. Full 6-metre stock lengths run without re-chucking. The LaserEdgeT3000-D EtherCAT control system with TubePro software handles the angled miter and bevel cuts specific to each geometric node angle — eliminating secondary sawing and producing weld-ready ends in a single pass. CC6012Y-1500W光纤激光管材切割机完成穹顶、金字塔及立方体框架构件的全部定长切割与端面斜切。6米全长管材无需重新装夹即可一次完成。LaserEdgeT3000-D以太网控制系统搭配TubePro软件，针对各几何节点角度执行斜切与坡口切割——省去二次锯切工序，一次成型焊接就绪端面。

1,500W MAX fiber laser1500W MAX光纤激光 Kerf 0.1–0.15 mm切缝0.1–0.15 mm ±0.03 mm repeat accuracy重复定位精度±0.03 mm 70 mm tail waste only仅70 mm尾料损耗 22 kW / 380V 3-phase22 kW / 380V三相

Cast Hub Inventory — Partner-Supplied Stock铸造轮毂库存——合作方供货

Cast stainless steel hubs are produced off-site by our manufacturing partner to our proprietary tooling specifications and held on the factory floor as ready inventory rather than run as a live production station. Each hub accepts the laser-cut pipe ends at the precise node angles of its structure type — geodesic frequency, pyramid angle, or cube orthogonal — and is drawn from stock as kits are assembled. 铸造不锈钢轮毂由我们的制造合作伙伴在厂外按专有模具规格生产，并作为现成库存存放于厂内，而非作为独立生产工位运行。每个轮毂均针对其结构类型的精确节点角度——测地线频率、金字塔角度或立方体直角——接纳激光切割管材端面，并在配套组装时从库存中调取。

Cast 304 stainless steel铸造304不锈钢 Held as floor inventory作为厂内库存存放 Geodesic / pyramid / cube variants测地线/金字塔/立方体三种形式

Deburring, QC & Kitting去毛刺、质检与配套组装

Cut tube ends are deburred, inspected against the BOM for each structure, and matched with their cast hub components. Frame members and hubs are bundled into numbered, container-ready kits — each kit corresponding to one structure, with all hardware included. 切割管材端面去毛刺后，依据各结构物料清单逐一检验，并与对应铸造轮毂组件配套。框架构件与轮毂打包成带编号的集装箱出货套件——每套对应一个结构单元，所有五金件一并随附。

BOM-matched per structure按结构物料清单配套 Numbered crate kits编号装箱套件 All hardware included包含所有五金件

Panel Production板材生产

Structural insulated panels — built in-house结构保温板——自主生产

Each panel is a composite assembly: a precision-cut stainless steel skin, a phenolic foam insulation core, and an MgO board interior face, bonded together and edge-finished with a formed stainless L-profile rim. All cutting, assembly, and veneering happens on the factory floor. 每块板材均为复合组件：精密切割的不锈钢蒙皮、酚醛泡沫绝热芯层以及氧化镁板内层——三者粘合后以成型不锈钢L型材收边。所有切割、组装与饰面工序均在厂内完成。

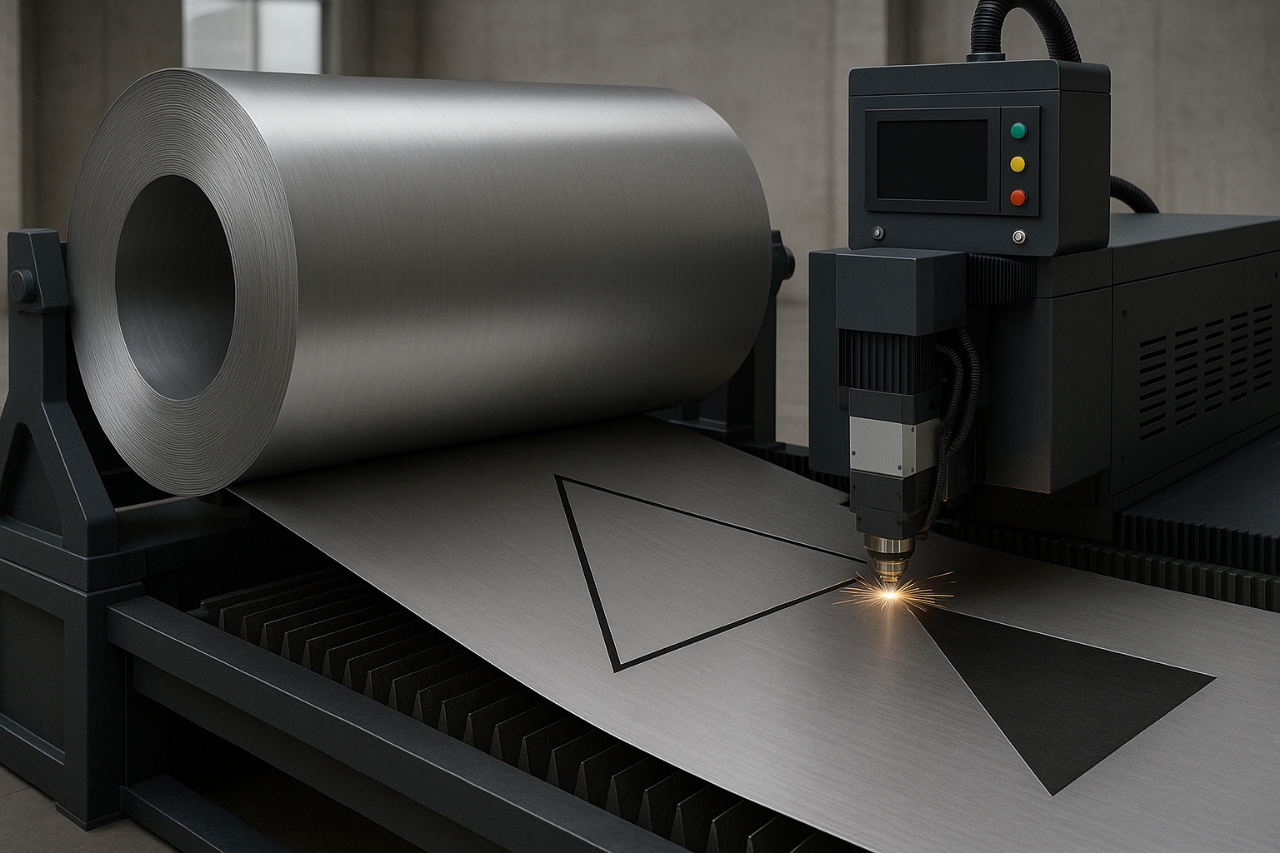

Fiber laser cutting a triangular panel skin from stainless steel coil stock

Fiber laser cutting panel skins from coil stock光纤激光从卷料切割板材蒙皮

Panel production line板材生产线

Stainless Steel Skin Cutting — Metal Roll Stock不锈钢蒙皮切割——卷料加工 5×10 ft Fiber Laser — 1500W5×10英尺光纤激光机 — 1500W

304 stainless steel sheet is fed from roll stock onto our 5×10 ft (1,525×3,050 mm) flatbed fiber laser cutting machine. The laser cuts the precise triangular, pentagonal, or rectangular panel skin geometry for each structure type from our DXF files — clean edges, no tool wear, ready to form. At 1,500W the machine handles our standard 0.6 mm panel skin gauge at high speed with a fine kerf. 304不锈钢卷料展开后送入5×10英尺（1,525×3,050 mm）平台光纤激光切割机。激光依据DXF文件，针对各结构类型精密切割三角形、五边形或矩形板材蒙皮轮廓——切边整洁，无刀具磨损，可直接成型。1500W功率下，以极细切缝高速切割标准0.6 mm板材蒙皮料厚。

1,500W fiber laser flatbed1500W光纤激光平台 5×10 ft cutting area (1,525×3,050 mm)切割幅面5×10英尺（1,525×3,050 mm） 0.6 mm 304 SS roll stock0.6 mm 304不锈钢卷料 DXF file input — full geometry rangeDXF文件输入——覆盖全部几何形状

MgO Board & Phenolic Foam Core Cutting氧化镁板与酚醛泡沫芯层切割 Water Jet — 2.4 m × 4 m水刀机 — 2.4 m × 4 m

MgO board (magnesium oxysulfate grade) and phenolic foam insulation sheets are cut to panel geometry on our waterjet machine. The waterjet table is 2.4 m wide × 4 m long — large enough to nest multiple panel shapes per cut cycle and handle full sheet stock efficiently. Waterjet is the preferred method for both materials: it produces clean edges on the MgO board without cracking or dust, and cuts the phenolic foam without heat distortion. 氧化镁板（硫氧镁级）与酚醛泡沫绝热板在水刀机上按板材轮廓切割。水刀工作台为2.4 m宽×4 m长，每次切割可多块套嵌排版，整板加工高效。水刀是两种材料的首选工艺：切割氧化镁板时边缘整洁，不开裂、无粉尘；切割酚醛泡沫时无热变形。

2,400 mm × 4,000 mm table工作台2400 mm × 4000 mm MgO board — MOS grade (no chloride)氧化镁板——硫氧镁级（无氯） Phenolic foam insulation core酚醛泡沫绝热芯层 Cold cut — no heat distortion冷切割——无热变形 Multi-panel nesting per cycle每次切割多块套嵌

L-Profile Rim Cutting — Panel Edge FramesL型材收边切割——板材边框 CC6012Y-1500W

The outer structural rim of each panel is formed from 304 stainless steel L-profile (angle section). The CC6012Y-1500W tube and profile laser cutter — already used for round and square tube — handles the L-profile cuts, including the angled miters at each panel corner. This eliminates a separate saw operation and produces clean, weld-ready miter joints at the panel corners for a tight, consistent edge assembly. 每块板材的外部结构收边采用304不锈钢L型材（角钢）制作。已用于圆管和方管加工的CC6012Y-1500W管材与型材激光切割机同样承担L型材切割任务，包括各板材转角处的斜面切割——省去独立锯切工序，板材转角处形成整洁、可直接焊接的斜接缝，确保收边组装紧密一致。

304 SS L-profile / angle section304不锈钢L型材/角钢 Mitered corner cuts per panel geometry按板材几何斜切转角 Weld-ready edges — no secondary ops焊接就绪边缘——无二次工序

Panel Assembly — Robot Arm Welding & Press Bonding板材组装——机器人焊接与压力粘合 Borunte BRTIRUS1510A + Bond Press

The laser-cut SS skin, phenolic foam core, MgO board face, and L-profile rim frame are brought together for final panel assembly. The 6-axis robot arm laser welds the stainless rim frame joints and skin attachment points — its multi-axis reach handles the angled corner joints of triangular and pentagonal panels that fixed tooling cannot. The press machine then applies uniform clamping pressure across the panel face during adhesive cure, ensuring a void-free bond between the skin, foam core, and MgO board. 激光切割不锈钢蒙皮、酚醛泡沫芯层、氧化镁板面层与L型材边框汇集进行最终板材组装。六轴机器人手臂激光焊接不锈钢边框节点与蒙皮连接点——多轴可达性解决了固定工装无法触及的三角形和五边形板材斜角节点。压力机随后在胶固化过程中对板面施加均匀夹持压力，确保蒙皮、泡沫芯层与氧化镁板之间的无缺陷粘合。

6-axis robot — laser weld rim joints六轴机器人——激光焊接边框节点 Handles triangular & pentagonal geometries适配三角形与五边形几何 Bonding press — uniform cure压力机——均匀固化加压 Void-free composite bond无缺陷复合粘合

Specialty Veneering & Finish特色饰面与精整 Custom veneer surfaces定制饰面表层

Completed panels receive their final surface in-house through specialty veneering. In place of paint, we bond architectural veneer surfaces to the panel face — natural stone laminate, timber, brushed and mirror stainless, and custom textured finishes — for a premium, project-specific appearance. Panels are then QC-inspected, numbered, and crated for shipment. 完成组装的板材在厂内通过特色饰面工艺完成最终表面处理。我们以建筑级饰面表层取代喷涂，将天然石材复合板、木饰面、拉丝与镜面不锈钢及定制纹理饰面粘合于板面，呈现高端、项目专属的外观。板材随后经质检、编号并装箱出货。

Stone / timber / metal veneers石材/木材/金属饰面 Project-specific finishes项目定制饰面 QC, numbered & crated质检、编号与装箱

Machine Specifications设备规格

Production equipment — full spec生产设备——完整规格

Four machines cover the full production scope from tube cutting to panel assembly. Key electrical, spatial, and typical operating sound requirements are listed for each to support factory planning. 四台设备覆盖从管材切割到板材组装的全部生产流程，各设备列明主要电气、空间及典型运行噪音需求，以支持厂房规划。

M01

Fiber Laser Tube & Profile Cutter光纤激光管材与型材切割机

Chang Chang Laser — CC6012Y-1500W

Frame框架 SS Tube L-Profile 1500W Fiber

CC6012Y-1500W fiber laser tube cutting machine

Primary frame cutting machine. Handles all round/square tube cuts for dome, pyramid, and cube frame members, plus the stainless L-profile rim cuts for panel edge frames. The LaserEdgeT3000-D EtherCAT control with TubePro software manages angled miter cuts at each geometric node angle without secondary sawing.主框架切割设备。完成穹顶、金字塔与立方体框架构件全部圆管/方管切割，以及板材边框不锈钢L型材切割。LaserEdgeT3000-D以太网控制系统搭配TubePro软件，直接执行各几何节点斜切，无需二次锯切。

Power draw用电功率

22 kW

380V ±10% AC 50Hz 3-phase

Footprint占地尺寸

8.73 × 1.9 m

H: 2,357 mm — ships 1×40CQ1×40CQ集装箱发货

Machine weight设备重量

2,700 kg

Forklift required for positioning就位需叉车

ModelCC6012Y-1500W

Laser source激光光源MAX 1500W

Cutting head切割头OSPRI LCN03

Control控制系统LaserEdgeT3000-D

Pipe range管径范围⌀/□ 10–120 mm

Load length装载长度6,500 mm

Kerf width切缝宽度0.1–0.15 mm

Repeat acc.重复定位精度±0.03 mm

Tail waste尾料损耗70 mm

Cooling冷却方式Water — S&A CWFL-1500ANS03

Guide rail导轨DTX (Taiwan)

Laser warranty激光光源质保24 months

Machine warranty整机质保12 months

Sound level噪音水平~72 dB(A) typ.

M02

Fiber Laser Flatbed — Sheet Cutting光纤激光平台机——板材切割

5×10 ft — 1,500W5×10英尺 — 1500W

Panel Skin板材蒙皮 SS Sheet 1500W

5x10 ft fiber laser flatbed cutting machine with metal roll feeder

Cuts stainless steel panel skins from roll stock in full triangular, pentagonal, and rectangular panel geometries. The 5×10 ft (1,525×3,050 mm) bed accommodates our largest panel formats. DXF file input means geometry changes require no tooling changes.从卷料上切割不锈钢板材蒙皮，形状涵盖三角形、五边形及矩形全系板材几何。5×10英尺（1,525×3,050 mm）工作台可容纳最大尺寸板材格式。DXF文件输入，几何变更无需换模。

Cutting area切割幅面1,525 × 3,050 mm

Laser power激光功率1,500W fiber

Material材料304 SS 0.6 mm roll stock

File input文件输入DXF / AI / PLT

Sound level噪音水平~70 dB(A) typ.

M03

Waterjet Cutting Machine水刀切割机

2,400 mm × 4,000 mm

MgO Board Phenolic Foam酚醛泡沫 Waterjet

Waterjet cutting machine with CNC bridge gantry and catch tank

Waterjet cutting machine — CNC bridge gantry over the slatted catch tank.水刀切割机——CNC桥式龙门横跨条格集水槽。

Dedicated to MgO board and phenolic foam insulation core cutting. The 2.4 m × 4 m table allows full-sheet processing and multi-panel nesting per cut cycle. Cold-cut waterjet produces clean, crack-free edges on MgO board and zero heat distortion on the phenolic foam core. Installation requires a level concrete floor slab of at least 200 mm for adequate strength, with high-pressure pump and cutting table fed from separate three-phase and single-phase supplies.专用于氧化镁板与酚醛泡沫绝热芯层切割。2.4 m × 4 m工作台支持整板加工与每次切割多块套嵌。冷切割水刀在氧化镁板上产生整洁无裂缝边缘，酚醛泡沫芯层零热变形。安装要求地面为平整且厚度不低于200 mm的混凝土地坪以保证强度，高压泵与切割台分别由三相与单相电源供电。

Floor slab地面地坪

≥200 mm

level concrete平整混凝土

Cutting table切割台

220V · 1-ph

50 Hz · 3×2.5 mm²

HP pump高压泵

380V · 3-ph

50 Hz · 3×16+2×10 mm²

Table size工作台尺寸2,400 × 4,000 mm

Materials适用材料MgO board / Phenolic foam

Cut method切割方式Cold — no heat zone冷切割——无热影响区

Nesting套嵌排版Multi-panel per cycle每次多块

Hydraulic oil液压油Shell Turbo T46 · 204 L

Water inlet进水压力0.3–0.6 MPa

Compressed air压缩空气0.6–0.8 MPa

HP pump cable高压泵电缆3×50+1×10

Starter→motor起动柜至电机3×35+1×10 (star-delta)

Water / cooling pipe进水/冷却水管6分 (¾") pagoda

Sound level噪音水平~85 dB(A) typ.

M04

6-Axis Robot Arm — Laser Welding六轴机器人手臂——激光焊接

Borunte BRTIRUS1510A · 10 kg · 1,500 mm

Welding焊接 6-Axis Robotics

Borunte BRTIRUS1510A 6-axis arm, fitted with a fiber laser welding head.Borunte BRTIRUS1510A 六轴机器人手臂，配备光纤激光焊接头。

A Borunte BRTIRUS1510A 6-axis arm fitted with a fiber laser welding head. It laser welds the stainless L-profile rim joints and skin attachment points on assembled panels; its six-axis reach handles the acute-angle corner joints of triangular and pentagonal panels that fixed-axis tooling cannot access. Also used for hub node welding on frame assemblies. Compact, lightweight arm with IP54 dust/water protection and ±0.05 mm repeatability, driven by BORUNTE's Huacheng control system.采用博朗特BRTIRUS1510A六轴机器人手臂，配备光纤激光焊接头。激光焊接组装板材上的不锈钢L型材边框节点与蒙皮连接点；六轴可达性解决了固定轴工装无法触及的三角形和五边形板材锐角转角节点，同时用于框架组装的轮毂节点焊接。手臂紧凑轻量，具备IP54防尘防水与±0.05 mm重复定位精度，由博朗特华成控制系统驱动。

Payload负载

10 kg

laser head + fixture激光头+工装

Reach臂展

1,500 mm

max arm span最大臂展

Repeatability重复精度

±0.05 mm

IP54 ratedIP54防护

ModelBRTIRUS1510A

Axes轴数6

End-effector末端执行器Fiber laser weld head光纤激光焊接头

Payload负载能力10 kg

Max arm span最大臂展1,500 mm

Repeat acc.重复定位精度±0.05 mm

Robot weight机器人重量150 kg

Protection防护等级IP54

Joint speed关节速度190–336°/s (J1–J6)

Control控制系统Huacheng (BORUNTE)

Power supply电源220V ±10% 50/60Hz

Operating temp工作温度0–40 °C

Sound level噪音水平~68 dB(A) typ.

Application应用Panel rim + hub node welding板材边框+轮毂节点焊接

Our Facility我们的工厂

Holistic Health Hub — Level 0 Production Floor整体健康中心——0层生产厂房

Gen-Built production is housed on the ground / parking level (Level 0) of the Holistic Health Hub campus, converted from a 39 × 45 m below-grade garage into a single-flow panel and frame factory. Learn more at primary.farm.博建生产基地设于整体健康中心园区的首层/停车层（0层），由一处39 × 45米的地下车库改造为单向流水的板材与框架工厂。了解更多请访问 primary.farm。

Holistic Health Hub — pyramid skylight glass architecture

Location地址Holistic Health Hub — Level 0 (Garage Conversion)整体健康中心——0层（车库改造）

Floor footprint厂房尺寸39 × 45 m · 1,755 m²

Level type楼层类型Below-grade — sound contained地下层——隔音良好

Operational投产时间2026

Frame material框架材料304 SS — 2B / No.8

Panel substrate板材基材MgO board — MOS grade

Insulation core绝热芯层Phenolic foam SIP酚醛泡沫SIP

Peak power draw峰值用电功率~60 kW (all machines active)

Machine sound range设备噪音范围~68–85 dB(A) typ.

The Level 0 floor consolidates all panel production, frame fabrication, and finishing under one roof. The below-grade concrete structure naturally contains machine noise, keeping the production operation discreet within the wider Holistic Health Hub campus.0层厂房将板材生产、框架制造与精整工序集中于同一屋檐下。地下混凝土结构天然隔绝设备噪音，使生产作业在整体健康中心园区内保持低调。

The floor is configured for single-direction material flow: raw stock enters at one end, and finished, crated kits exit at the dispatch bay. The central core (stairs / lift) is retained, with production stations and storage buffers arranged around it.厂房按单向物料流布置：原材料从一端进入，成品装箱套件从发货区送出。中央核心筒（楼梯/电梯）予以保留，生产工位与仓储缓冲区环绕其布置。
